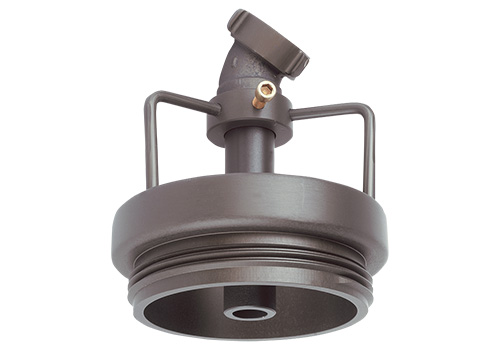

Style 135

Maxi-Flow Power Jet Siphon

Available Sizes:

  • 4" thru 6" discharge, with 1-1/2" adjustable inlet

Configuration & Features

  • Used to move water through suction hoses between portable tanks using venturi action

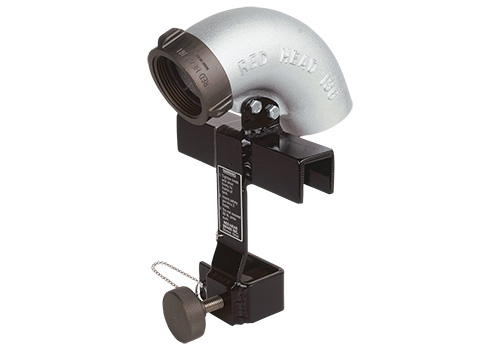

Style 136

Tank Fill Line Adapter

Available Sizes:

  • 2-1/2" only

Configuration & Features

  • Attaches to folding tank frame
  • Eliminates need for personnel to hold fill line
  • Safe, secure locking action
  • Swivel attached using #316 stainless steel ball bearings
  • Weight: 7 lbs.

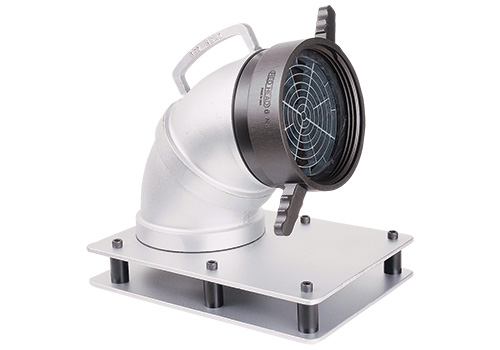

Style 137-HV Maxi-Flow

High Volume Low Level Strainer

Available Sizes:

  • 4", 4-1/2", 5" and 6"

Configuration & Features

  • Capable of flowing 1,700+ GPM
  • Rotates to suit hose angle/position
  • Drafts to 1-3/4" depth of water
  • Convenient handle for easy carry
  • Long handle swivel machined from 6061-T6 aluminum seamless extrusions
  • Swivel is hardcoat anodized to MIL-A-8625 Type III, Class 1
  • Swivel attached using 6262-T9 aluminum roller bearings
  • #318 stainless steel ball bearings used in rotating elbow joint
  • High flow replaceable all zinc suction strainer
  • Weight: 23 lbs.
