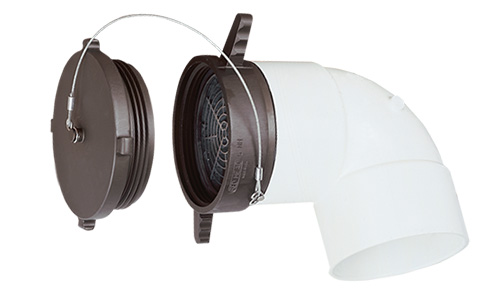

Style 132-F

Long Handle Swivel

Female Dry Hydrant Adapter

Style 130

Dry Hydrant Plug

Available Sizes - Style 132-F:

  • 4" thru 6"

Configuration & Features - Style 132-F:

  • 45 degree, 90 degree, or straight 180 degree
  • "O" ring seal assures vacuum tight joints
  • Suction strainer, removable for easy cleanout
  • All threads available on swivel except NPT

Available Sizes - Style 130:

  • 4" thru 6"

Configuration & Features - Style 130:

  • Vinyl coated stainless steelwire rope secures cap

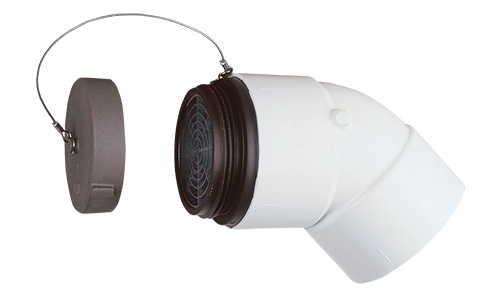

Style 132

Male Dry Hydrant Adapter

Style 131

Dry Hydrant Cap

Available Sizes - Style 132:

  • 4" thru 6"

Configuration & Features - Style 132:

  • 45 degree, 90 degree, or straight 180 degree
  • "O" ring seal assures vacuum tight joints
  • Suction strainer with removable snap ring for easy cleanout
  • All threads available

Available Sizes - Style 131:

  • 4" thru 6"

Configuration & Features - Style 131:

  • Vinyl coated stainless steelwire rope secures cap

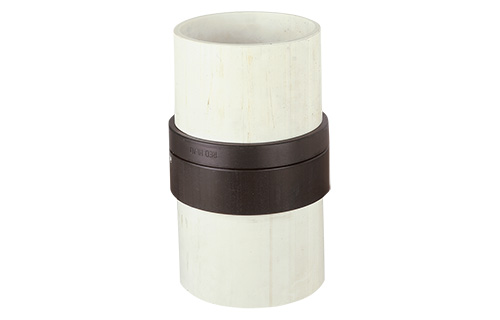

Style 132-CS

Dry Hydrant Swivel

Available Sizes:

  • For 6" PVC only.

Configuration & Features

  • Swivels are machined from tough 6061-T6 aluminum seamless extrusions
  • Swivel connections are made with 6262-T9 aluminum roller bearings
  • Full 360 degree rotation to allow access from any side
  • Adaptable to existing locations

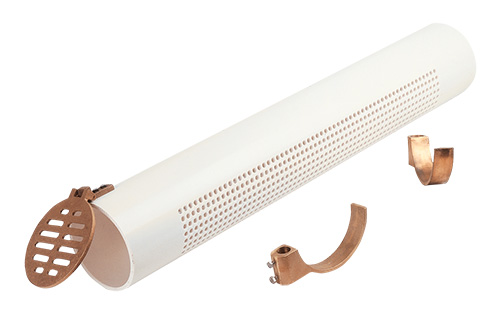

Style 133

Dry Hydrant Underwater Strainer

Style 134

Dry Hydrant Underwater Strainer Supports

Available Sizes - Style 133:

  • 6" - approximately 40" long
  • 8" - approximately 60" long

Configuration & Features - Style 133:

  • Strainer made of Schedule 40 PVC pipe to ASTM D1785.
  • 6" - Drilled with 1,140 3⁄8" holes, each chamfered
  • 8" - Drilled with 1,840 3⁄8" holes, each chamfered
  • 6" - strainer open area approx. 125 sq. in.
  • 8" - strainer open area approx. 200 sq. in.
  • Both ends machined square
  • Outboard end has brass clappered end cap on 6"; PVC on 8"
  • 8" shipped with 8" x 6" reducing adapter

Available Sizes - Style 134:

  • 6" and 8"

Configuration & Features - Style 134:

  • Cradles and supports dry hydrant intake at proper level
  • 6" - bronze construction
  • 8" - aluminum construction
  • Includes two stainless steel locking screws
  • 1" O.D. pipe or rod is used for support (not furnished).
