The Red Head Brass Commitment to Quality and Safety in Hydrant Wrenches

Hydrant wrench heads are made from strong ductile iron: ASTM A536, Grade 65-45-12

Jaws are machined from tough manganese bronze: Alloy 865 ASTM B147-8A, (QQ-C-390 (C3)

Hydrant wrench handles are chrome plated carbon steel: 1215 ASTM A575 (QQ-S-630)

Style 105, Style 105S

Adjustable Hydrant Wrench

with Double Spanner Head

Configuration & Features

  • Wrench will accommodate pentagon heads to 1-7/8" and square heads to 1-1/2"
  • Double spanner head is designed to fit 3/4" thru 6" rocker lug or pin lug fittings
  • Jaw is replaceable
  • Weight:
    Style 105 – 5 lbs
    Style 105S – 4 lbs
  • Length:
    Style 105 – 19-1/2"
    Style 105S – 11-1/2"

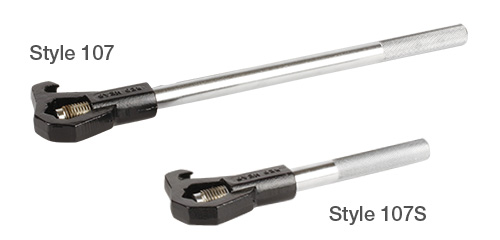

Style 107, Style 107S

Adjustable Hydrant Wrench

with Single Spanner Head

Configuration & Features

  • Wrench will accommodate pentagon heads to 1-3/4" and square heads to 1-1/4"
  • Single hook spanner head is designed to fit 3/4" thru 6" rocker lug or pin lug fittings
  • Weight:
    Style 107 – 4 lbs
    Style 107S – 3 lbs
  • Length:
    Style 107 – 18-1/2".
    Style 107S – 10-1/2"
