The Red Head Brass Commitment to Quality and Safety in Gauges

Quality construction is the trademark of all Red Head Brass line and cap gauges.

  • All aluminum components are machined from 6061-T6 aluminum seamless extrusions or forged from 6061-T6 aluminum to SAE-AMS-QQ-A-367 and ASTM B247
  • All aluminum components are hardcoat anodized per MIL-A-8625 Type III, Class 1
  • Full scale accuracy +/-1.6%
  • Made in USA
  • Each assembly utilizes a 2-1/2" diameter glycerine filled pressure gauge with the following features:
    • Shock resistant one piece cast brass body
    • stainless steel case and cover ring
    • High impact lens
    • Dial face is bright white with black numbering from 0 to 300 PSI in 5 lb. increments
    • Glycerine prevents freezing to –40° F and reduces the effects of vibration to allow accurate readings

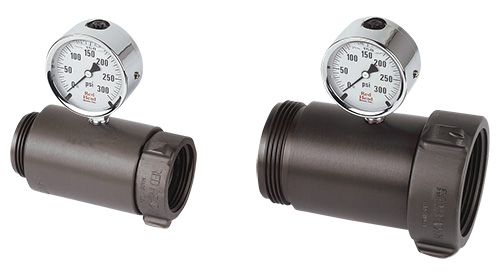

Style 153

Threaded Line Gauge

Available Sizes

  • 1" thru 3"

Configuration & Features

  • Line gauge for testing static or flowing pressures in hose or nozzles
  • 1" and 1-1/2" line gauge swivel attached with aluminum piston rings
  • 2-1/2" and 3" line gauge swivel attached with #316 stainless steel ball bearings

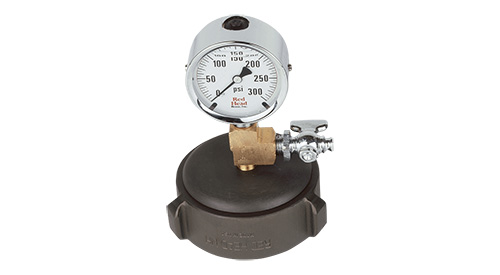

Style 154

Threaded Cap Gauge

Available Sizes

  • 1-1/2" thru 3"

Configuration & Features

  • Cap gauge for testing hose or static pressures on hydrants and trucks
  • Petcock to release pressure.

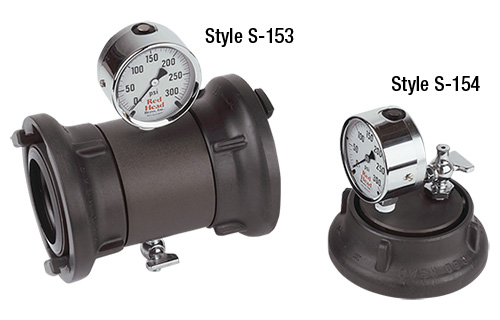

Style S-153

Storz Line Gauge

Style S-154

Storz Cap Gauge

Available Sizes

  • 1-1/2", 2-1/2", 4", 5" and 6"

Configuration & Features

  • All Storz Head connections are forged 6061-T6 aluminum to SAE-AMS-QQ-A-367 and ASTM B247

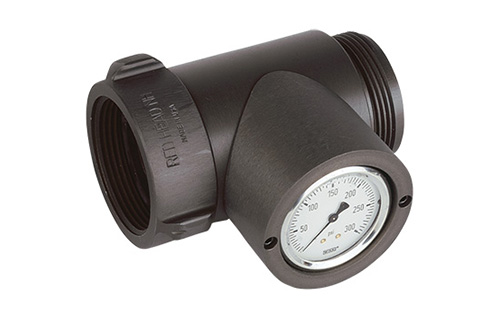

Style 155

Threaded Encased Line Gauge

Available Size

  • 2-1/2" only

Configuration & Features

  • Line gauge designed for standpipe use, with fully enclosed gauge to prevent damage
  • 2-1/2" swivel attached with #316 stainless steel ball bearings
  • Weight: 4 lbs
