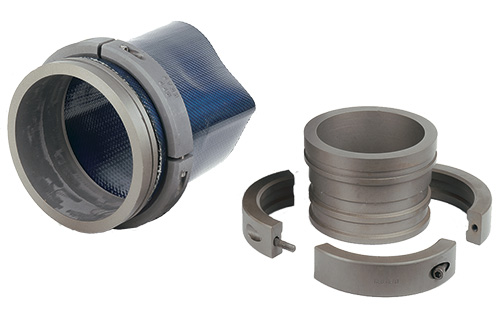

Style GS

Reattachable

Grooved Shank Couplings

A lightweight aluminum grooved shank, easily installed, field repairable, and reattachable coupling.

Designed for use with large diameter layflat hose, the coupling consists of a hose shank and a Red Head Brass segmented Kwik- Tach clamp collar.

One end of the shank is machined to accept the mating collar. The opposite end has a machined groove.

The clamp collar is easily assembled to the hose using a hex (Allen) wrench.



Available Sizes:

  • 4" and 6"

Configurations & Features:

  • The Kwik-Tach clamp collar allows for re-tightening after initial hose pressurization
  • 4" thru 6" shanks and collar segments are machined from 6061-T6 aluminum seamless extrusions
  • Shanks and collars are hardcoat anodized to MIL-A-8625 Type III, Class 1
  • Shanks have undulating diameters to provide for secure and leak proof hose attachment. Collar segment diameters are sized to match mating shank diameters and hose thickness
  • Collar segments are drilled and tapped on one end with a corresponding clearance hole on the opposite end
  • Outside collar diameters sized to provide added abrasion resistance for the hose and radiused to reduce hang-ups when dragging
  • Clamp Bolts are high tensile Alloy Steel per ASTM A574 with Zinc yellow dichromate plating per QQ-Z-325, Type II for corrosion resistance. (Strength equivalent to Grade 9 Bolt)

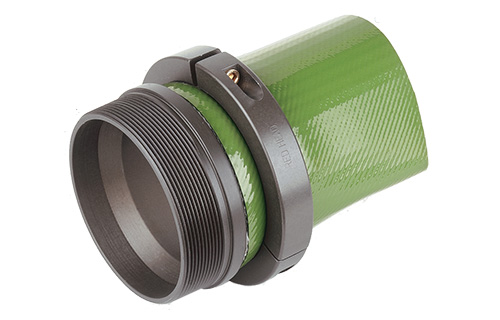

Style TS

Reattachable

Threaded Shank Couplings

A lightweight aluminum grooved shank, easily installed, field repairable, and reattachable coupling.

Designed for use with large diameter layflat hose, the coupling consists of a hose shank and a Red Head Brass segmented Kwik- Tach clamp collar.

One end of the shank is machined to accept the mating collar. The opposite end is threaded.

The clamp collar is easily assembled to the hose using a hex (Allen) wrench.



Available Sizes:

  • 4" and 6"

Configurations & Features:

  • The Kwik-Tach clamp collar allows for re-tightening after initial hose pressurization
  • 4" thru 6" shanks and collar segments are machined from 6061-T6 aluminum seamless extrusions
  • Shanks and collars are hardcoat anodized to MIL-A-8625 Type III, Class 1
  • Shanks have undulating diameters to provide for secure and leak proof hose attachment. Collar segment diameters are sized to match mating shank diameters and hose thickness
  • Collar segments are drilled and tapped on one end with a corresponding clearance hole on the opposite end
  • Outside collar diameters sized to provide added abrasion resistance for the hose and radiused to reduce hang-ups when dragging
  • Clamp Bolts are high tensile Alloy Steel per ASTM A574 with Zinc yellow dichromate plating per QQ-Z-325, Type II for corrosion resistance. (Strength equivalent to Grade 9 Bolt)

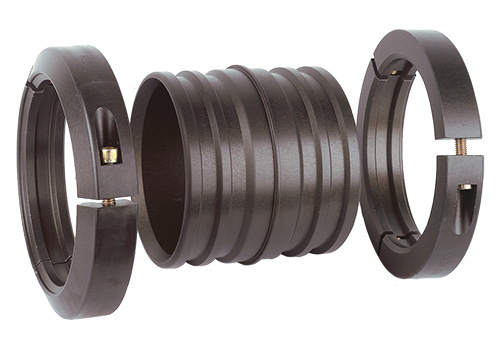

Style MEND

Reattachable Mending Sleeve

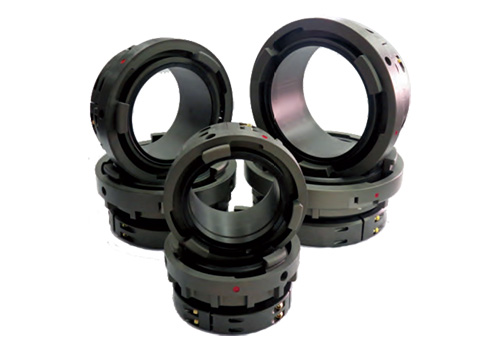

STYLE SKT

Quick Connect Couplings
