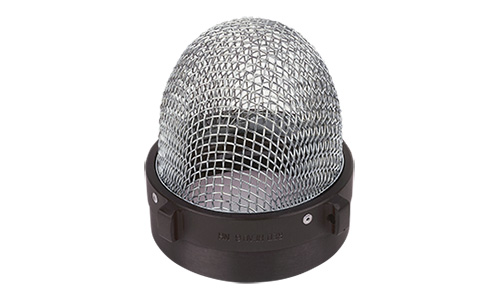

Style 139

Basket Strainer

Available Sizes:

  • 12-1/2" thru 6"

Configurations & Features:

  • Base is made from 6061-T6 aluminum seamless extrusions hardcoat anodized to MIL-A-8625 Type III, Class 1
  • Base has lugs and holes for rope connections
  • Baskets are 1/4" x 1/4" square zinc-plated mesh for high capacity intake

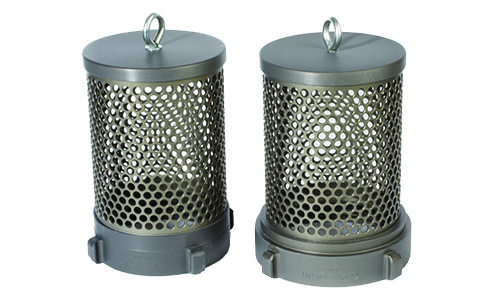

Style 140

Barrel Strainer

Available Sizes:

  • 5" and 6"

Features:

  • Tough, high volume barrel strainer made from 6061-T6 lightweight aluminum and hardcoated to MIL-A-8625 Type III, Class 1 to resist corrosion and abrasion
  • Drilled with 720, 3/8" diameter holes
  • All three parts are threaded for easy removal to repair or change threads
  • Includes an attached rope eye

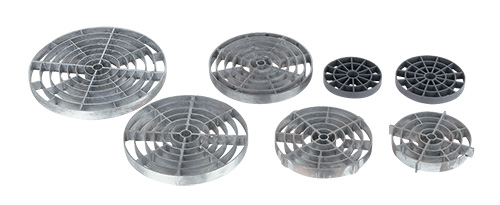

Style 690

Adapter Strainer

Available Sizes:

  • 2-1/2" thru 6"

Configurations & Features:

  • Designed for suction adapters
  • Sizes 2-1/2" and 3" are plastic
  • All others thru 6" are tough die cast zinc
