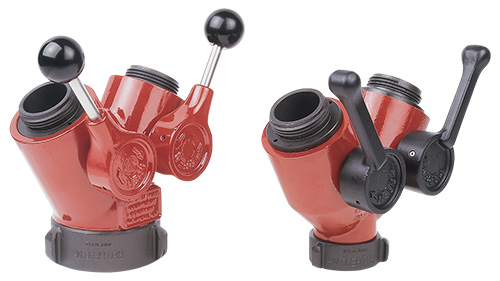

Style 272NL

Aluminum Non-Locking Wyes

Available Sizes:

  • 1-1/2" inlet x two(2) 1-1/2" outlets
  • 2-1/2" inlet x two(2) 1-1/2" outlets

Configurations & Features:

  • 1-1/2" inlet x two(2) 1-1/2" available in NH
  • 2-1/2" inlet x two(2) 1-1/2" available in NH or NPSH
  • Special threads available on inlet swivels
  • Inlet swivels and outlet connections are hardcoat anodized to MIL-A-8625 Type III, Class 1
  • Quarter turn ball valves operate easily at all pressures with Delrin ball and seat
  • Handles are non-locking
