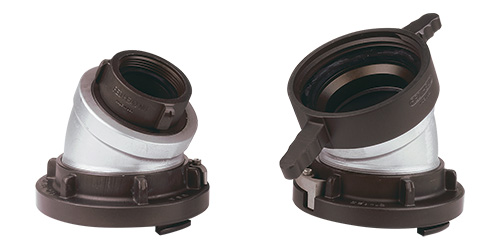

Style SE

Storz to Female Rocker Lug Swivel

Style SE-LH

Storz to Female Long Handle Swivel

Available Sizes:

  • 4" thru 6" Storz x 6" thread

Configurations & Features:

  • All Storz heads are forged 6061-T6 aluminum to Spec. SAE-AMS-QQ-A-367 and ASTM B247. Also complies with DIN standard
  • Stainless steel lock assembly on all 4", 5" or 6" Storz
  • 30 degree elbow made from tough, lightweight 356-T6
  • Cast elbow has powder coated silver finish
  • All Storz heads and threaded connections are hardcoat anodized to MIL-A-8625 Type III, Class 1
  • No Plain Anodized, Paint or Powder Coated Finishes On Connections
  • No Cast Heads
  • Style SE-LH: same features and sizes as Style SE except with long handle swivel.

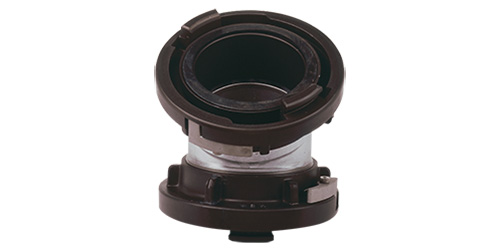

Style SE-SS

Storz to Storz

Available Sizes:

  • Available in 4", 5" and 6" only

Configurations & Features:

  • All Storz heads are forged 6061-T6 aluminum to Spec. SAE-AMS-QQ-A-367 and ASTM B247. Also complies with DIN standard
  • Stainless steel lock assembly on all 4", 5" or 6" Storz
  • 30 degree elbow made from tough, lightweight 356-T6
  • Cast elbow has powder coated silver finish
  • All Storz heads and threaded connections are hardcoat anodized to MIL-A-8625 Type III, Class 1
  • No Plain Anodized, Paint or Powder Coated Finishes On Connections
  • No Cast Heads
